This appendix contains technical specification information about your system, as follows:
Each compute stick enclosure houses two complete compute modules. Table A-1 lists the specific features of the stick.
Table A-1. Compute Stick Specifications
Category | Specification |
|---|---|
Length | 37.125 in. (94.3 cm) |
Width | 5.78 in. (14.68 cm) |
Height | 3.34 in. (8.5 cm) |
Weight | ~21 lbs. (9.54 kg) |
PCIe slots | Two double-wide (full height) x16 and two low-profile x8 |
CPUs | Two AMD C32 processors (one on each node board) |
Drives | Up to four SATA hard disks, plus up to four solid-state drives (SSDs) |
Power supply | One 1050 Watt (80+ Gold rated) |
Table A-2 summarizes the Prism XL system configuration ranges. Note that each C32 processor socket houses eight or 12 processor “cores”. Each stick supports two x16 accelerator PCIe cards.
Table A-2. System Configuration Ranges
Category | Minimum | Maximum |
|---|---|---|
GPUs | 2 double-wide GPU cards | Up to 126 double-wide PCIe accelerator cards in a rack |
Processors | 2 processors (eight or 12 cores per processor) | Up to 756 processor cores in a rack |
Stick compute enclosure | 1 per rack | Up to 44 in a single rack system. Up to 63 in multi-rack systems. |
Slice DIMM capacity | 2 DIMMs per slice (node). Four are recommended. | Eight DIMMs per stick (four per slice) |
Gigabit Ethernet switches | One | Two in a single-rack system |
InfiniBand switches | One optional | Eight in a single-rack system |
Table A-3 shows the physical specifications of the Prism XL system rack. See Chapter 4 for additional rack related technical information.
Table A-3. System Physical Specifications
System Features (single rack) | Specification |
|---|---|
Weight (full) maximum | ~1700 lbs.(772.7 kg) for the 42U rack (approximate) |
Shipping weight maximum | ~1800 lbs. (818.2 kg) approximate |
Voltage range Nominal Tolerance range | North America/International 200-240 VAC /230 VAC 180-264 VAC /180-254 VAC |
Frequency Nominal Tolerance range | North America/International 50/60 Hz /50 Hz 47-63 Hz /47-63 Hz |
Phase required | Single-phase or 3-phase |
Power cable | 12 ft. (3.66 m) pluggable cords |
Shipping dimensions | Height: 81.375 in. (206.7 cm) |
Access requirements Front Rear Side |
48 in. (121.9 cm) 48 in. (121.9 cm) None |
Table A-4 lists the environmental specifications of the system.
Table A-4. Environmental Specifications
Feature | Specification |
|---|---|
Temperature tolerance | +5 °C (41 °F) to +35 °C (95 °F) (up to 1500 m / 5000 ft.) |
Temperature tolerance | -40 °C (-40 °F) to +60 °C (140 °F) |
Relative humidity | 10% to 80% operating (no condensation) |
Cooling requirement | Ambient air or optional water cooling |
Maximum altitude | 10,000 ft. (3,049 m) operating |
This section contains specifications and port pinout information for the base I/O ports of your system and system head node, as follows:
The system auto-selects the Ethernet port speed and type (duplex vs. half-duplex) when the server is booted, based on what it is connected to. Figure A-1 shows the Ethernet port.
Table A-5 shows the cable pinout assignments for the Ethernet port operating in 10/100-Base-T mode and also operating in 1000Base-T mode.
Ethernet 10/100Base-T Pinouts | Gigabit Ethernet Pinouts |
|---|---|
Pins Assignment | Pins Assignment |
1 Transmit + | 1 Transmit/Receive 0 + |
2 Transmit – | 2 Transmit/Receive 0 – |
3 Receive + | 3 Transmit/Receive 1 + |
4 NU | 4 Transmit/Receive 2 + |
5 NU | 5 Transmit/Receive 2 – |
6 Receive – | 6 Transmit/Receive 1 – |
7 NU | 7 Transmit/Receive 3 + |
8 NU | 8 Transmit/Receive 3 – |
NU = Not used
Figure A-2 shows the universal serial bus (USB) type A connector is provided on each of the individual nodes (slice) that supports general USB connections. Table A-6 lists the pin assignments for the USB type A connector.
Table A-6. Pin Assignments for USB Type A Connector
Signal | Color | Pin Number |
|---|---|---|
VCC | Red | 1 |
-Data | White | 2 |
+Data | Green | 3 |
Ground | Black | 4 |
Each system head node has a 9-pin serial interface connector. These ports are capable of transferring data at rates as high as 230 kbps. Other features of the ports include the following:
Programmable data, parity, and stop bits
Programmable baud rate and modem control

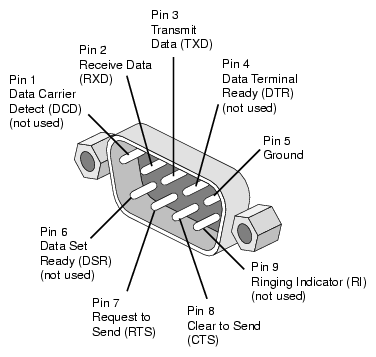

Figure A-3 shows an example serial port.
Table A-7 shows pinout assignments for the 9-pin male DB-9 connector.
Pin | Assignment | Description |
|---|---|---|
1 | DCD | Data carrier detect |
2 | RXD | Receive data |
3 | TXD | Transmit data |
4 | DTR | Data terminal ready |
5 | GND | Signal ground |
6 | DSR | Data set ready |
7 | RTS | Request to send |
8 | CTS | Clear to send |
9 | RI | Ring indicator |
